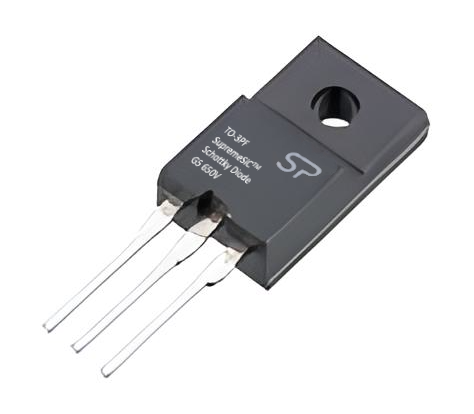

SiC Schottky Diodes G5 650V TO-3PF

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Key Features

  • Silicon Carbide technology for high efficiency and durability.

  • Zero reverse/forward recovery for fast switching, low losses.

  • Temperature-stable switching performance.

  • High surge current capability.

  • Excellent thermal conductivity for heat dissipation.

  • Low forward voltage drop at high temperatures.

  • Tight forward voltage distribution for reliability.

  • Specified dv/dt ruggedness for stability.

  • JEDEC-qualified for industry standards.

  • Pb-free, RoHS-compliant design.

Specifications

  • Material: 4H-SiC (wide bandgap semiconductor, 3.26 eV)

  • Voltage Ratings: 650V (customizable for high-power applications)

  • Forward Voltage Drop (V_F): 1.5V at 650V (low for high efficiency)

  • Switching Frequency: >100 MHz (ultra-fast for minimal switching losses)

  • Operating Temperature: -55°C to 175°C (robust for automotive and industrial use)

  • Reverse Recovery Time (t_rr): Near-zero (10–20 ns), reducing switching losses

  • Current Ratings: 5A–50A (scalable for EV chargers and industrial inverters)

  • Thermal Conductivity: 370 W/m·K (3x silicon for superior heat dissipation)

  • Breakdown Electric Field: 2.5–3 MV/cm (10x silicon for high-voltage operation)

  • Package Types: TO-3PF (AEC-Q101-compliant)

  • Certifications: AEC-Q101, ISO 9001, RoHS, REACH

  • Packaging: Anti-static, vacuum-sealed in Class 100 cleanroom for reliability

Benefits

  • Exceptional reliability for demanding applications.

  • Superior efficiency across all load conditions.

  • Reduced electromagnetic interference (EMI) for cleaner operation.

  • Robust performance during surge events.

  • Enhanced system efficiency compared to silicon diodes.

  • Enables higher frequency and greater power density designs.

  • Cost and size savings through minimized heatsink and magnetic components.

Applications

  • Motor drives

  • AC-DC and DC-DC converter

  • Battery charging infrastructure

  • Switch Mode Power Supply (SMPS)

  • Server and telecom power supply

  • Uninterruptible Power Supply (UPS)

  • Power Factor Correction

  • Photovoltaic inverters

  • Solar inverters

At Supreme Pro, we provide fully customizable SiC diodes to suit your unique needs, including specialized options like merged PiN-Schottky (MPS) diodes. Contact us today for a personalized quote and discover how our solutions can advance your projects.

+ we provide fully customizable SiC diodes to suit your unique needs, including specialized options like merged PiN-Schottky (MPS) diodes. Contact us today for a personalized quote and discover how our solutions can advance your projects.
