SILICON CARBIDE (SiC) WAFERS

Powering the Future of Electronics

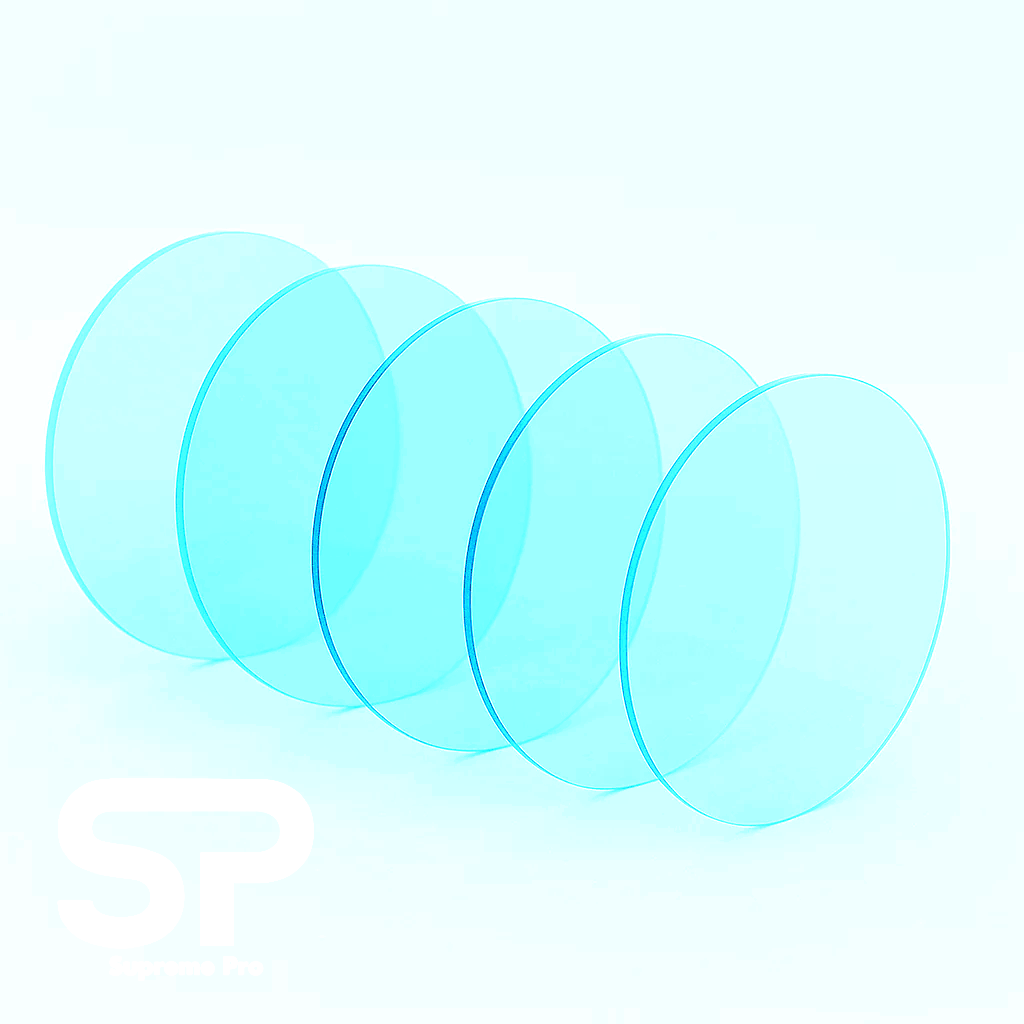

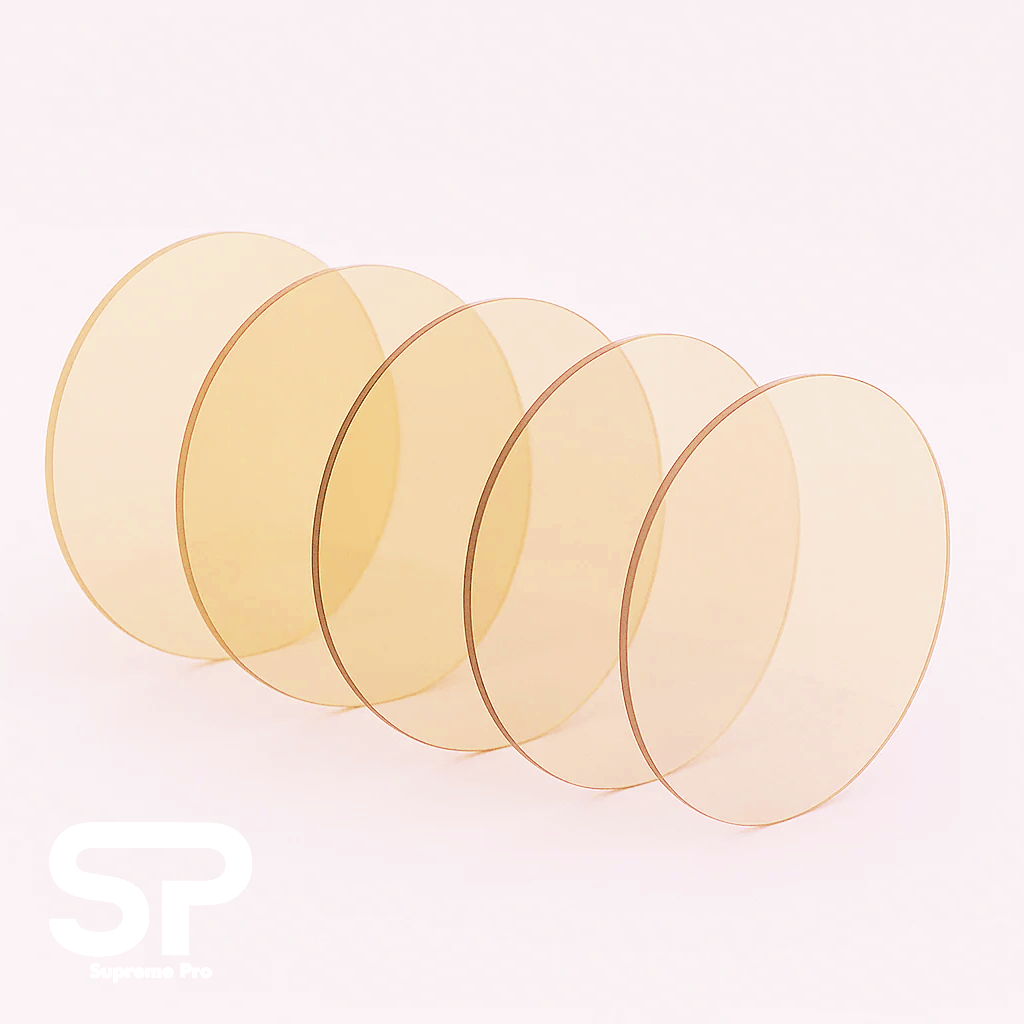

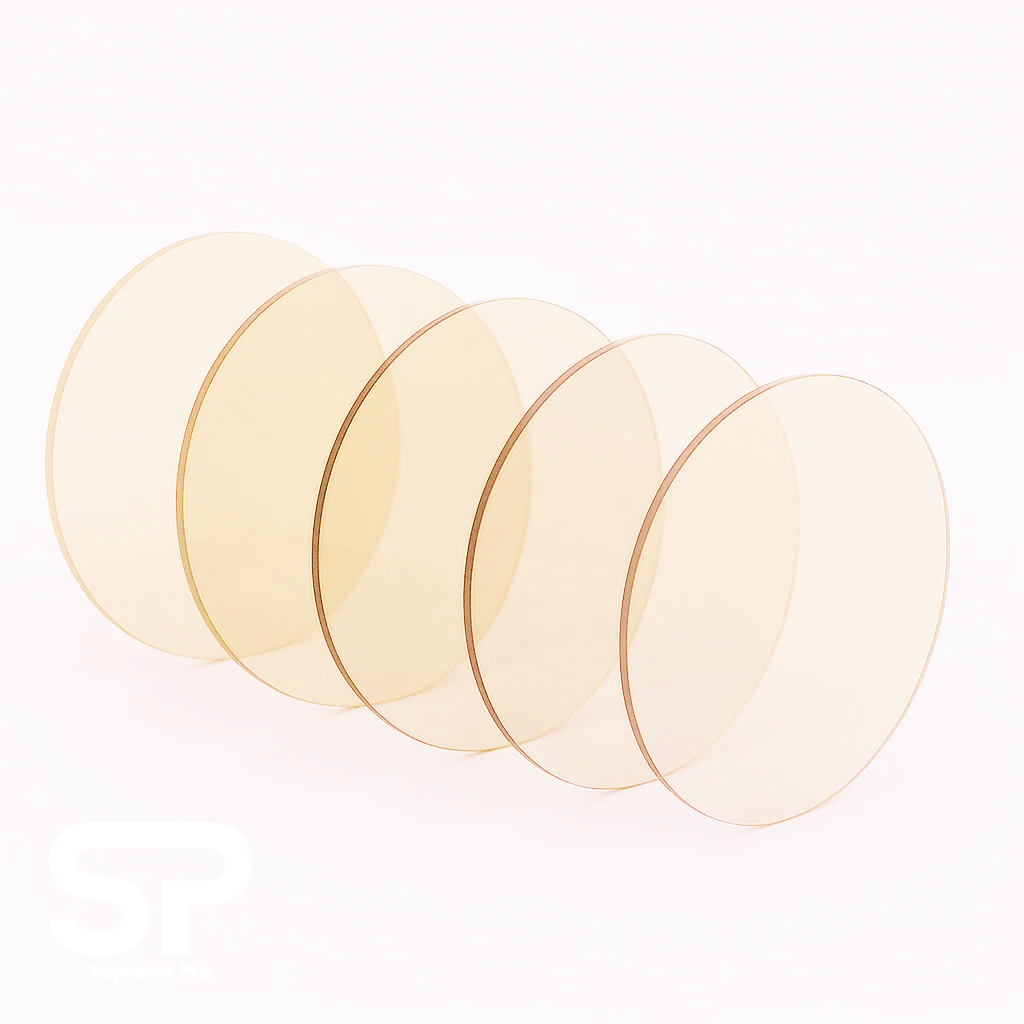

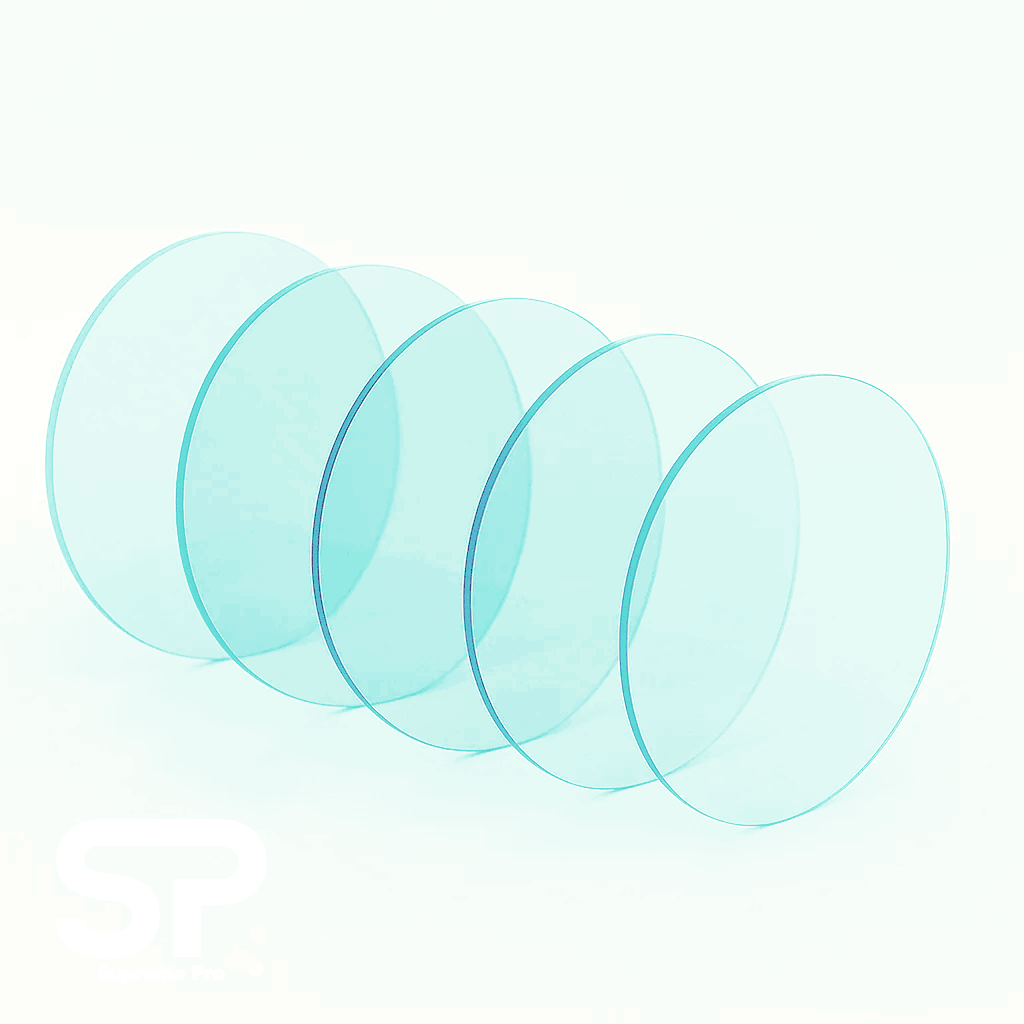

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Silicon Carbide (SiC) wafers are critical for high-performance power electronics, driven by demand in electric vehicles (EVs), renewable energy, and 5G telecommunications. Classified as a compound semiconductor, our SiC wafers are engineered to redefine performance in high-power, high-frequency, and high-temperature applications. Sourced from Taiwan’s world-leading semiconductor ecosystem and leveraging Singapore’s status as a global business hub, our SiC wafers deliver unmatched thermal conductivity, high-voltage resilience, and superior electron mobility.

Designed for automotive-grade reliability, our wafers enable compact, efficient, and sustainable solutions for electric vehicles, renewable energy, 5G systems, defense and aerospace. Backed by world-class quality and cost-effective pricing, these wafers are your gateway to cutting-edge innovation and efficiency in your next-generation devices.

+ We offer fully customizable SiC wafers and substrates to suit your unique needs, including specialized epitaxial options. Contact us today for a personalized quote and explore how our tailored solutions can elevate your projects.

WHY CHOOSE SiC WAFERS?

  • Unmatched Performance

    SiC’s wide bandgap and high thermal conductivity enable smaller, lighter, and more efficient devices, critical for EV and 5G markets.

  • Scalability

    Transition to 200mm wafers increases chip yield by up to 30%, reducing costs and meeting high-volume demand.

  • Reliability

    Low defect density (MPD ≤5/cm²) and AEC-Q100 compliance ensure consistent performance in mission-critical applications.

  • Sustainability

    High-efficiency SiC devices reduce energy consumption, supporting decarbonization goals (78% CO2 reduction in EVs).

  • Future-Proof

    Aligned with the $2.65 billion SiC market’s 22.24% CAGR, our wafers drive innovation in AI, 5G, and renewable energy.

WHY CHOOSE US?

Superior Quality

Leveraging Taiwan’s 60% global chip share, we deliver Prime Grade 4H-SiC wafers with micropipe density ≤5/cm², meeting stringent AEC-Q100 standards for automotive and aerospace applications.

Cost Efficiency

Our focus on yield optimization (up to 90% in 2026 scenarios) and reusable wafer technologies reduces costs by up to 30%, addressing buyer concerns about SiC’s high cost vs. silicon.

Custom Solutions

We offer tailored wafer specifications (e.g., doping, thickness) and dedicated support, matching key player’s customer-centric approach, to meet unique project needs.

Sustainability Focus

Our SiC wafers enable energy-efficient devices, reducing EV ownership costs by ~$2,000 and supporting decarbonization, aligning with buyer priorities for green technology.

Advanced Manufacturing

Partnering with Taiwanese leaders in this sector, we use cutting-edge PVT and CVD processes to ensure low-defect, high-uniformity wafers, scalable to 200mm for cost-efficient production.

Reliable Supply Chain

Unlike competitors facing 20% supply shortages, our vertically integrated supply chain, inspired by STMicroelectronics’ Catania campus, ensures consistent delivery and extended longevity programs.

Global Trust

Certified to ISO 9001, ISO 14001, RoHS, and REACH standards, our wafers are trusted by OEMs in 45+ countries, backed by Singapore-Taiwan expertise.

Contact Us: Ready to elevate your designs with our SiC Wafers? Click below to request a quote or discuss custom specifications.

SPECIFICATIONS

  • Material: 4H-SiC (primary polytype for power electronics; 6H-SiC for specific RF applications)

  • Diameter: 100mm, 150mm, 200mm (8-inch gaining traction for high-volume cost efficiency)

  • Thickness: 350–500 µm (customizable, with ±25 µm tolerance for standard grades)

  • Micropipe Density (MPD): ≤1/cm² (Ultra-Prime Grade) or ≤5/cm² (Prime Grade) for low-defect performance

  • Resistivity Uniformity: ≥95% (ensuring consistent doping across the wafer)

  • Surface Finish: Chemical Mechanical Polishing (CMP), epi-ready, Ra <0.2 nm for optimal epitaxial growth

  • Doping: N-type (nitrogen-doped, resistivity 0.015–0.028 Ω·cm) or semi-insulating (vanadium-doped, >10^5 Ω·cm)

  • Thermal Conductivity: 370–490 W/m·K (superior heat dissipation, 3x silicon)

  • Breakdown Electric Field: 2.5–3.5 MV/cm (10x silicon for high-voltage resilience)

  • Bandgap: 3.26 eV (wide bandgap enabling 3x silicon's temperature tolerance)

  • Crystal Orientation: (0001) with 4° off-axis (optimized for epitaxial layer quality in power devices)

  • Total Thickness Variation (TTV): <5 µm (for uniform processing)

  • Bow/Warp: <25 µm bow, <40 µm warp (minimizing handling issues)

  • Packaging: Class 100 cleanroom, vacuum-sealed in anti-static containers for contamination-free transport

Contact Us: Inquire about custom specifications or pricing. Click below to connect with our team.
